E01 External Thermal Imager Module — Miniaturized High-Sensitivity Thermal Sensing Core

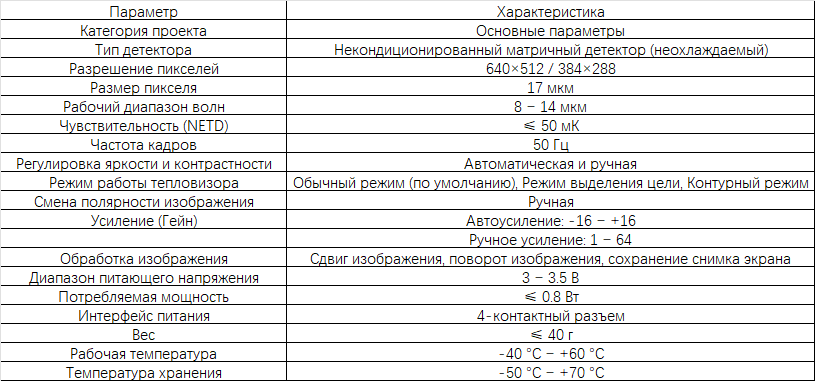

E01 is an ultra-compact, external infrared thermal imager module featuring a non-cooled focal plane array detector, supporting dual resolution configurations of 640×512 and 384×288 with a pixel size as low as 17μm, operating in the 8–14μm long-wave infrared band. The module boasts an ultra-high temperature sensitivity (NETD) of ≤50mK and a high frame frequency output of 50Hz, supporting automatic/manual brightness/contrast adjustment, multiple image modes, and flexible gain control. With a power consumption of only 0.8W and a weight of less than 40g, it can operate stably within a wide temperature range of -40℃ to +60℃, powered via a 4-pin socket (3–3.5V), making it ideal for integration into drones, robots, smart wearable devices, and industrial vision systems for efficient thermal visual perception.
Why choose the E01 external thermal imaging module?
The E01 module, with its high degree of integration, excellent thermal performance, and outstanding environmental adaptability, offers a truly reliable and cost-effective infrared thermal imaging solution for customers. Whether you are developing the next generation of security systems, industrial instruments, or consumer-grade smart devices, the E01 provides you with clear, real-time, and stable thermal visual perception capabilities. Its ultra-lightweight design and low power consumption characteristics make it particularly suitable for applications where size and power consumption are critical.
We provide flexible technical support and customization services, and welcome you to contact our sales and engineering team for more information or sample information.
